22" 33.2" Advertising Square Display LCD Wifi Android Wall Mounted Digital Advertising Interactive for Mall Retail Store Supermarket

Shelf-edge displays, digital shelf talkers and smart retail displays are a few names to describe this new display category. These displays are highly effective as they place your messaging at the point-of-decision for shoppers, helping to inform and influence based on product bene fits, promotions and other info delivered in dynamic, high-bright displays. These are designed for retail with hardened glass fronts allowing for easy store cleaning and durability.


SPECIFICATIONS

1. LCD: 22" IPS(1920*1920)
2. Product size:420*420*40mm
3. Active area:394.56*394.56mm
4. Brightness: 500nits
5. TP:N/A
6. CPU: RK3288 (Cortex-A17×4, 1.8 GHz, Mali-T764 GPU)
7. Memory: 2GB ROM, 16GB RAM
8. OS: Android 9.0 (we can custom CPU for different version of OS)
9. WiFi: IEEE 802.11b/g/n
10. Blue Tooth: 4.0
11. Interface: 1x HDMI OUT, 2x USB OTG, TF card slot max 64gb
12. Max power consumption: 20W
13. Multi-language English, Chinese, Spanish,ect
14.Power: Switch button*1, 100V-260Vac 50Hz/60Hz
15. Audio Output: 8Ω 5W*2,3.5mm audio output，allow connect external speaker, etc
16. LAN: 10/100/1000 Mbp,Connect network cable, allow screen to connect network



FEATURES:

1. Auto-start and Loop functions are pre-programmed so the content will automatically start and play on a loop when powering on the device or replacing the input device, without needing to access any settings.
2. Android O/S is available so that multiple digital screens can be remotely updated via WIFI simultaneously from one location
3. Split screen function
4. Multiple input options available – USB, SD Card, etc.
5. Built-in double audio stereo speakers

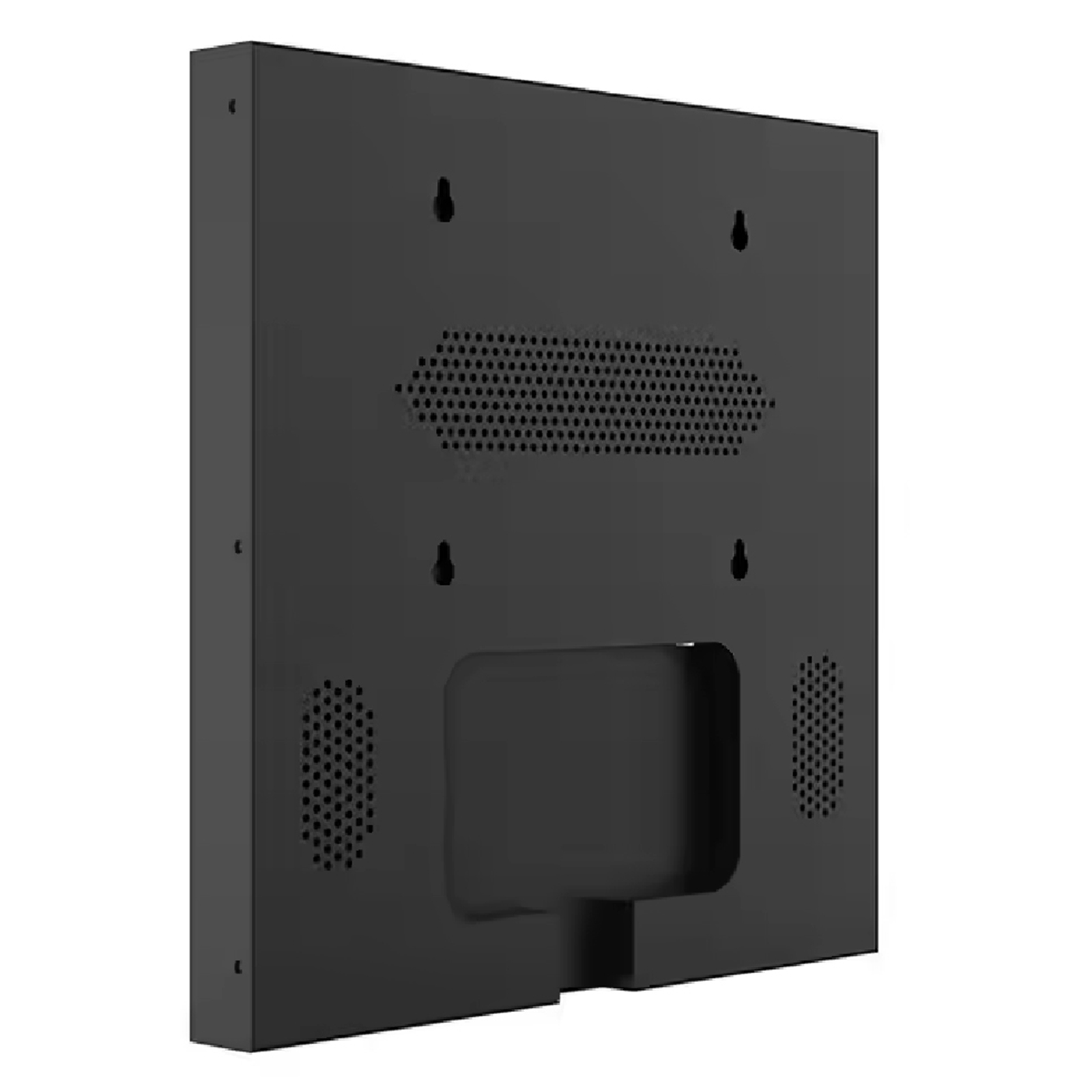

6. Multiple mounting options – wall mounting or shelf-edge mounting


APPLICATIONS:

1. Super market
2. retail store

TECHNICAL SPEC:

All products are custom made and therefore, we can amend the brightness, input types, input position and any other aspect of the specification to suit your requirements.
